From cutting wide baseboard to framing a roof, these techniques make angle cuts easy and accurate
Introduction
Circular saws can do more than just rough framing. With the techniques in this article you can make perfect angle, miter and even compound miter cuts.
Tools Required
- Circular saw
- Safety glasses
- Speed square
Project step-by-step (4)
Step 1
Smooth Right-Angle Bevel Cuts

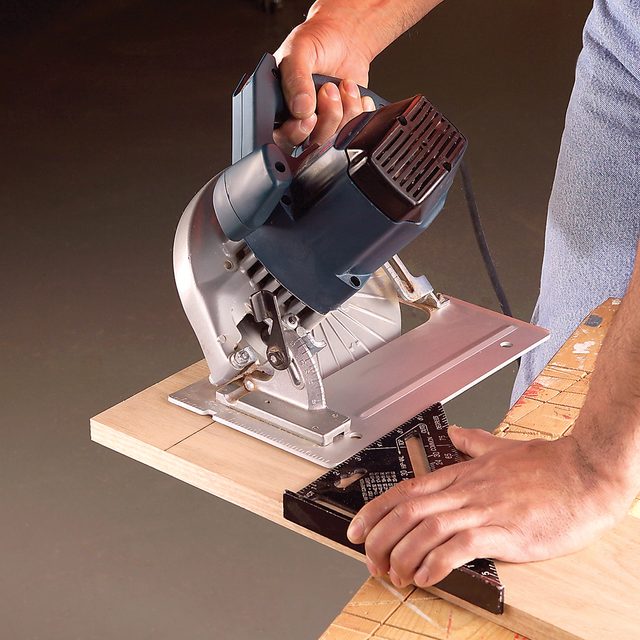

Cutting wide baseboards or fascias to form a tight, clean corner joint requires a perfectly square and straight bevel cut on the end of each board. Slide miter saws and radial arm saws work great for this type of cut. But with practice, you can make a near perfect cut with a circular saw too. The key is to use a guide. A Speed Square makes a perfect saw guide for 90-degree and 45-degree cuts.

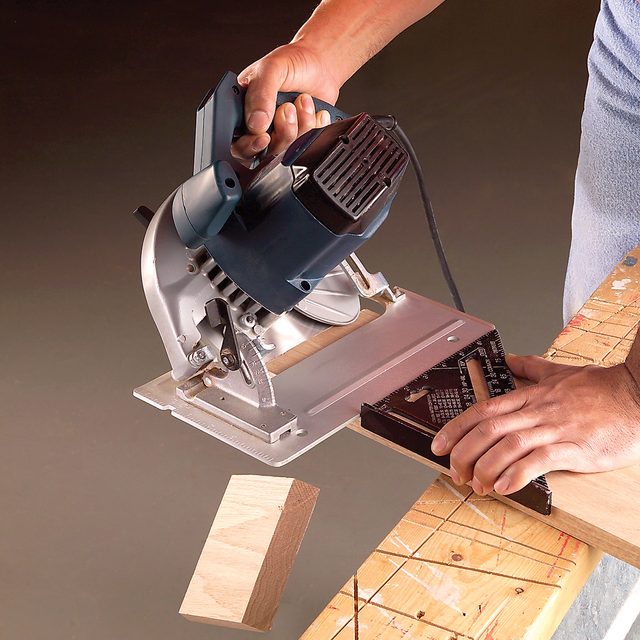

After you’ve lined up the blade and positioned the square, hold it firmly to prevent it from slipping. If you’re having trouble, try clamping the square to the board. Start the saw and nick the board with the blade to make sure it’s aligned exactly with the mark. Reposition the square slightly if necessary.
Pay close attention to keeping the saw’s base plate aligned with the edge of the square. A common mistake is to lift or twist the saw at the end of the cut, which results in a wavy cut. Steady, straight ahead follow-through is the key to avoiding this problem.
Step 2
Smooth Angle cuts

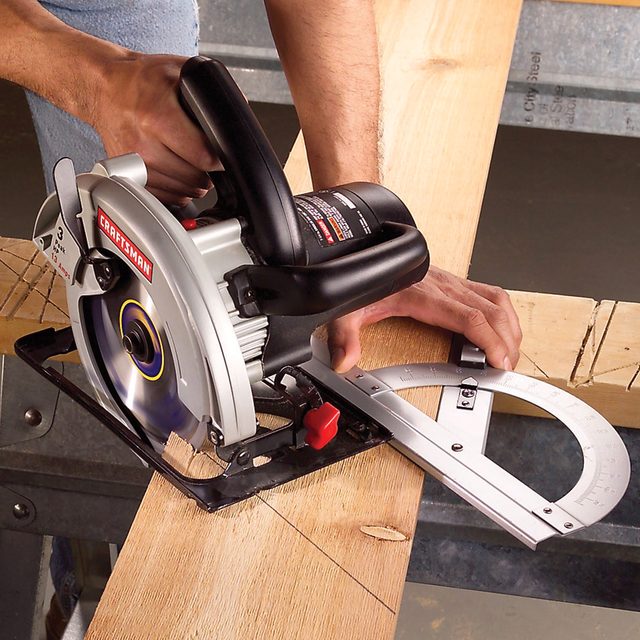

Deck boards, deck railings and fascia boards often require angle cuts, and the neater you make them, the better your job will look. As with the beveled cut we showed previously, the key to smooth angle cuts is using a guide. We found this large, protractor-like angle guide at a woodworking supply store. It has an adjustable arm that allows you to set the angle and a wing nut that you tighten to lock it in place.
Line up the saw and guide
Align the blade with the cutting line and slide the square up to the saw’s base. Grip the guide firmly against the board.
Push into the cut
Slide the base plate against the guide and push the saw firmly into the cut. There will be initial resistance from the blade guard.
Keep the saw moving smoothly.
Concentrate on keeping the base plate tight to the guide and the saw moving at a constant speed throughout the cut.
Complete the cut
Complete the cut by moving the saw steadily forward while keeping the back of the base plate in contact with the guide.
Step 3
Rough Compound-Angle Cut
Pull the blade guard up

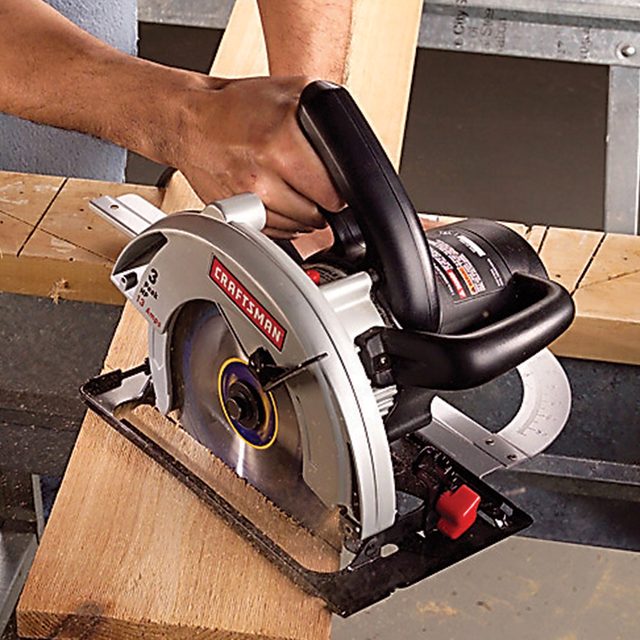

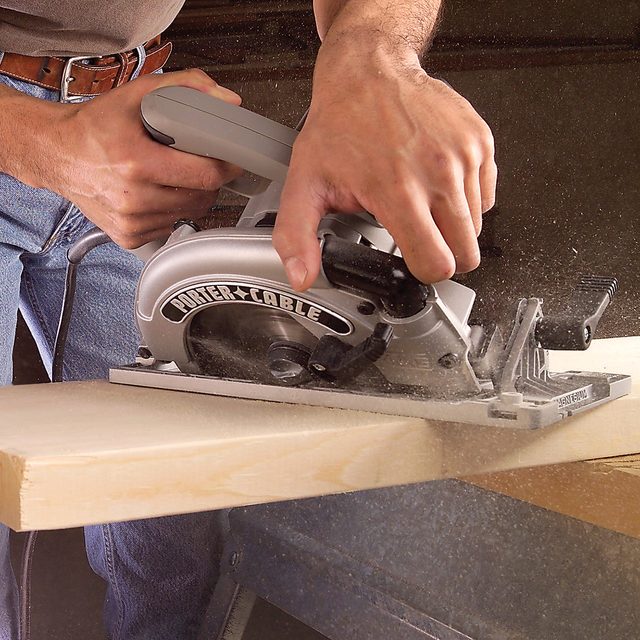

Rough cuts are the ones you make when you’re framing a roof or wall. They need to be accurate, but they don’t need to be pretty, so you can cut them freehand without a guide. Retract the blade guard as you start the cut. Align the saw blade and the mark on the saw’s base plate with the cutting line and start the cut.
Release the guard

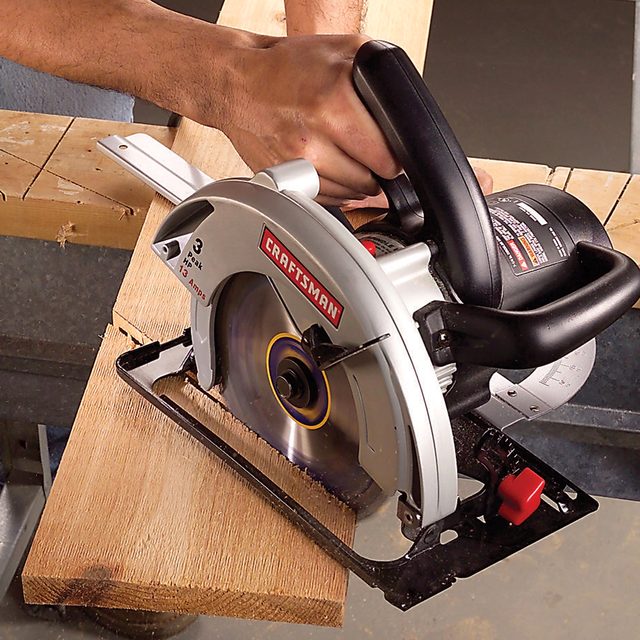

Release the blade guard gently and continue the cut. Keep the saw moving straight along the line until the saw blade clears the board. The blade guards on most circular saws tend to push the saw away from the line when you enter the board at an angle. Hold the blade guard up when you start the cut to eliminate this problem.
Step 4
Rough Beveled Rips
Mark the cut
Once in a while, you’ll run into a situation requiring a beveled cut along the length of a board. Long cuts parallel to the grain are called rips, and table saws are the usual tools for ripping boards. But a circular saw also works great for rough rips. In fact it’s often easier and safer to move the saw along the board than to wrestle a long heavy board through a table saw.

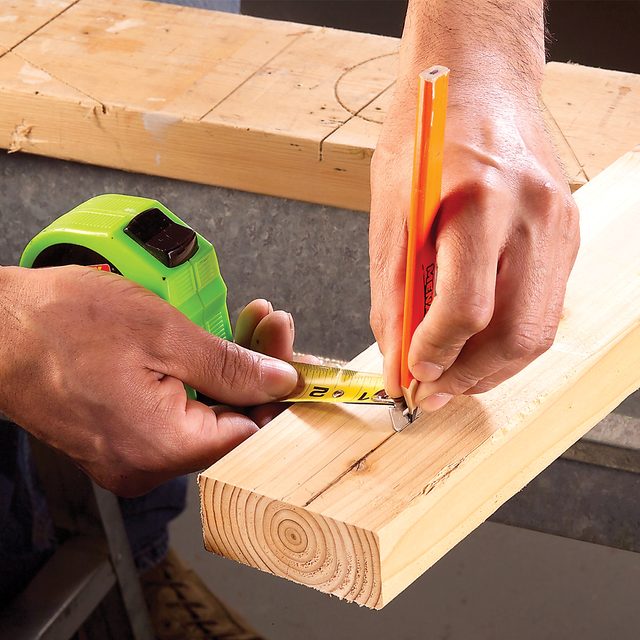

Mark the rip width on the board and line up the end of the tape with the mark. Pinch the tape and slide it along the edge of the board while holding a pencil tight to the end of the tape.
Secure the board

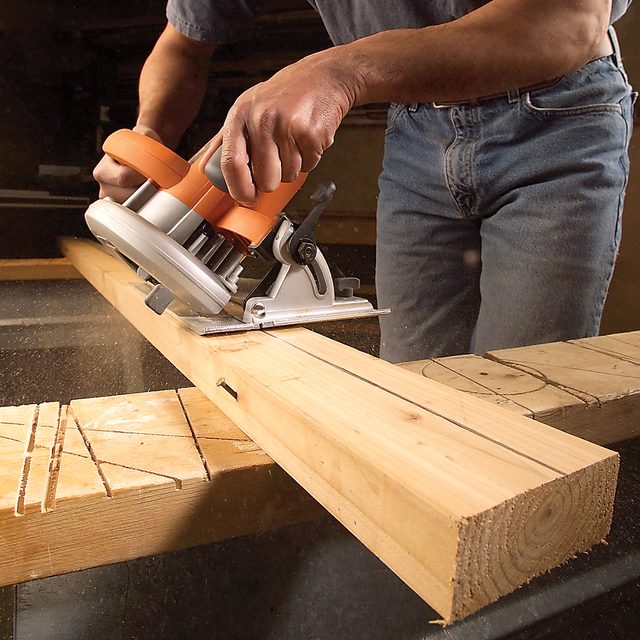

Tack the board to the sawhorses. Set the saw to the desired bevel and set the blade depth to 1/4 in. deeper than the thickness of the board. Saw along the line using the notch or line on the saw’s base to help guide the cut.
