How to Spray Paint Kitchen Cabinets

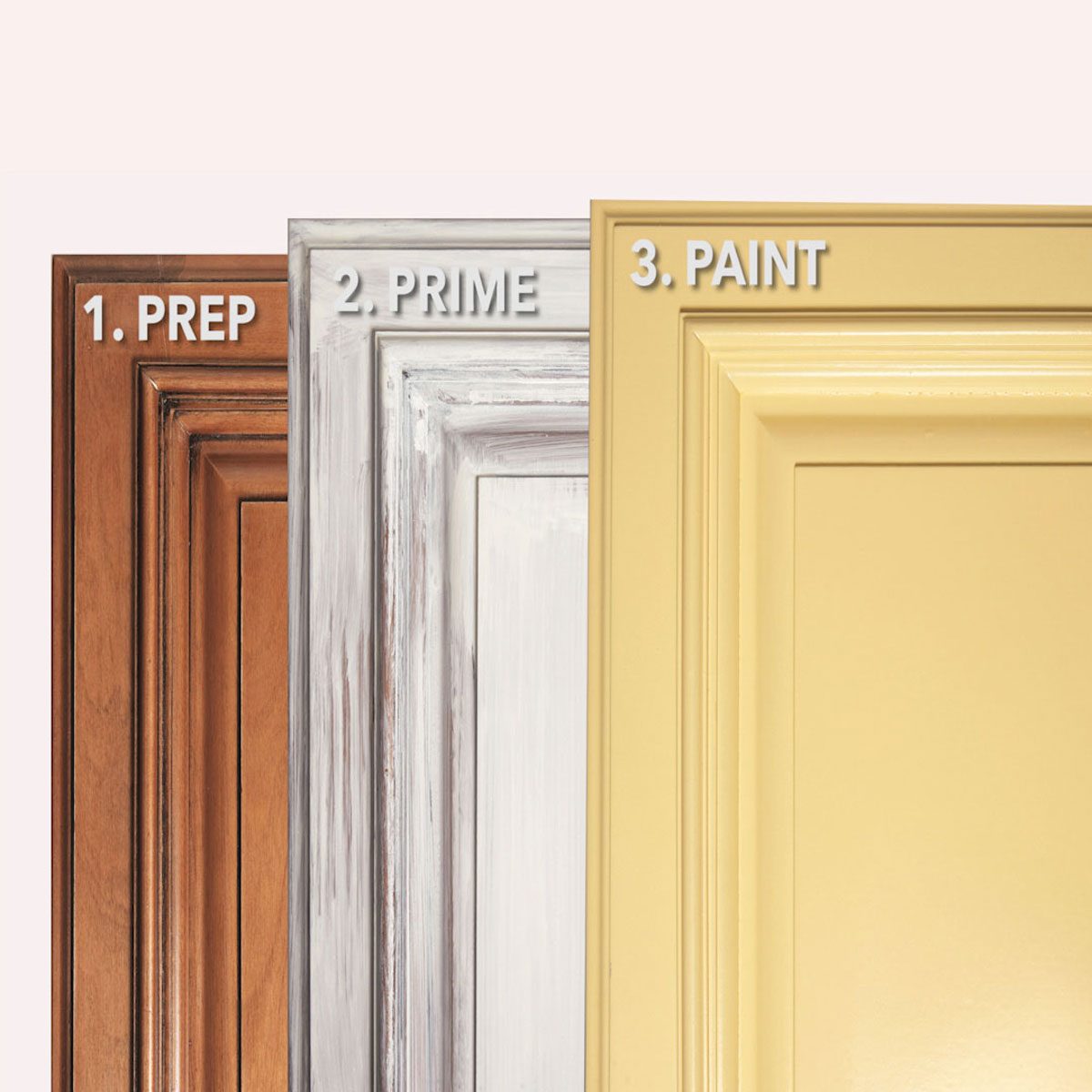

New-Looking Cabinets in Three Steps

Clean the old paint cabinets thoroughly, prime with a stain-blocking primer, and then paint with high-quality latex enamel.

]

Is Painting Right For You?

Not all cabinets are worth painting. They must be structurally sound—paint obviously isn’t a cure for doors that are falling apart or don’t close properly. If your cabinets are oak or some other species with coarse grain and you want a smooth finish, you’ll have to fill the grain on the door panels, cabinet frames and cabinet sides with spackling compound. That nearly doubles the length of this project because sanding the compound takes a long, long time (but if you don’t mind a coarse finish, you can skip this step). If you like the style of your cabinets and they’re in good shape, and you’re willing to invest the time to paint them, this project is for you.

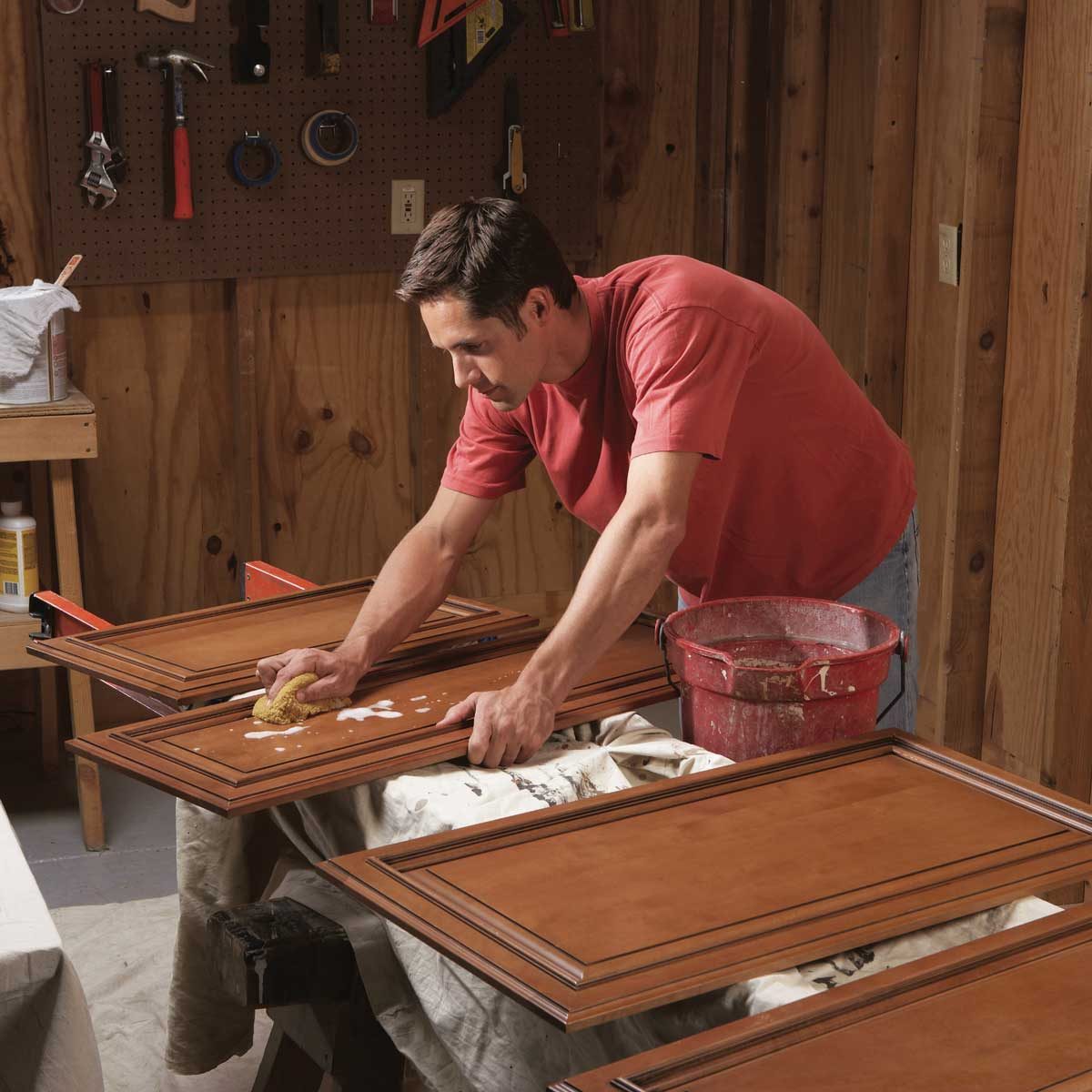

Clean the Cabinets

• Label the doors as you remove them so you’ll know where to reinstall them.
  • Pro tip: Writing a number in the hinge hole (for Euro hinges) or where the hinge attaches works great—it’s the only part that’s not painted.
• Take the doors and drawers to the garage or another work area and spread them out on a work surface.
• Remove any remaining cabinet hardware.
• Using warm water and dish detergent., wash the front and the back of the doors and the drawer fronts to remove grease.
• Clean away all the grease or the primer and paint won’t adhere.
• Rinse clean with water.
• Stick tape in the hinge holes or where the hinges attach to keep out the paint.

Family Handyman

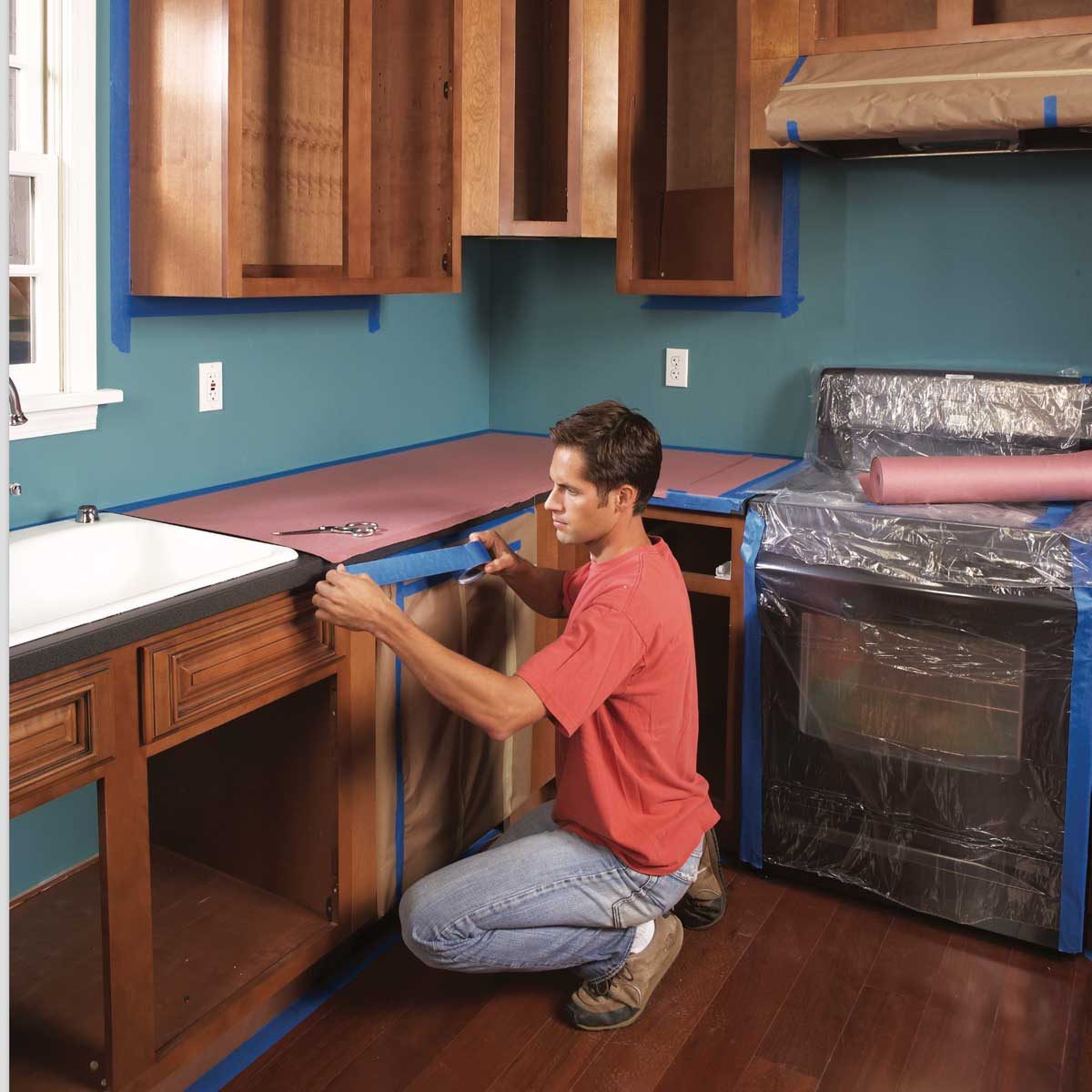

Protect Adjoining Surfaces

• Wash any grease and grime off the cabinet frames in the kitchen.
• Tape off everything that abuts the cabinet frames.
• Tape off the walls, ceiling and flooring, and cover the countertops with rosin paper.
• Wrap appliances and the vent hood with plastic sheeting or masking paper.

Family Handyman

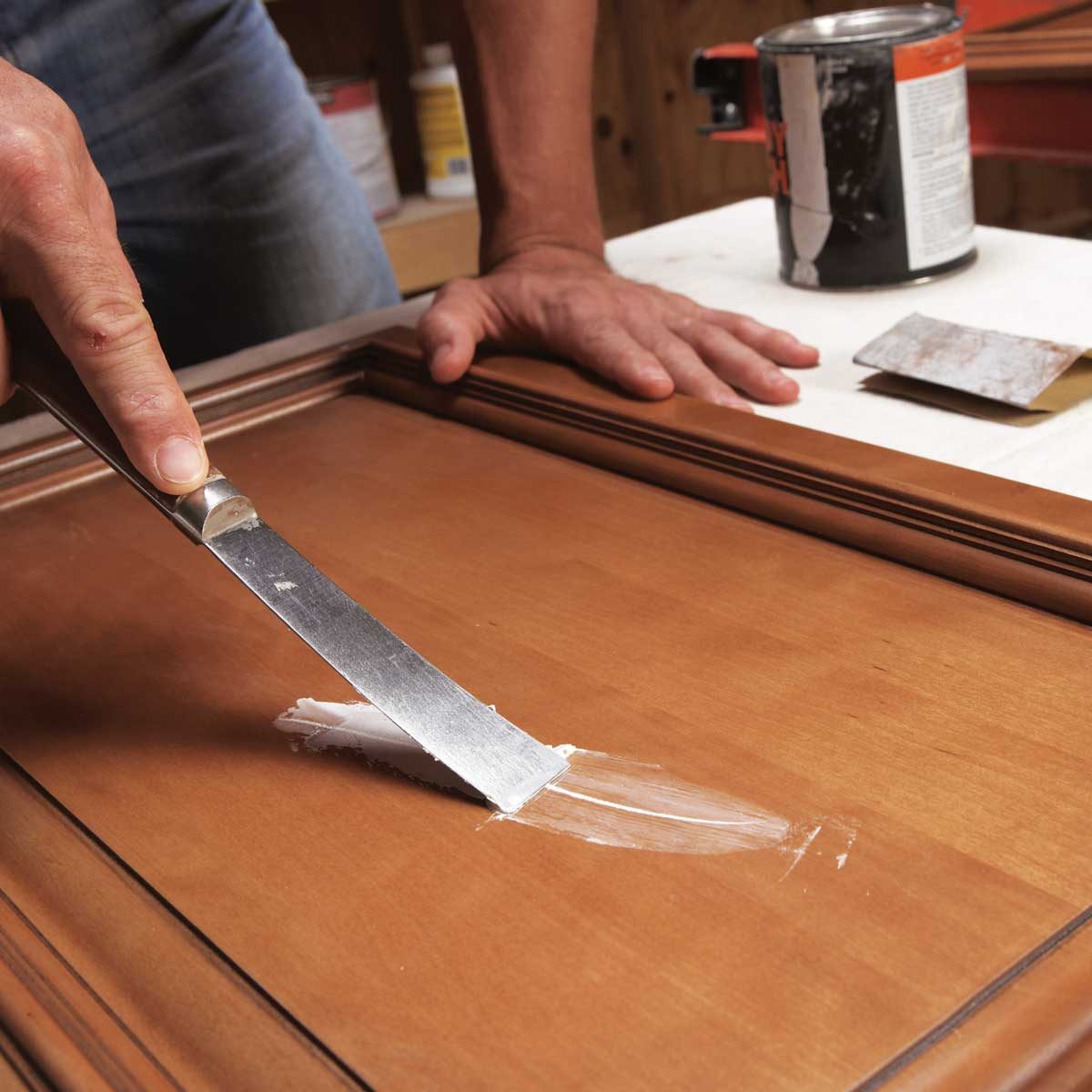

Repair Problem Spots and Prep Cabinets

• Sand any damaged areas on the doors or paint cabinet frames with 320-grit sandpaper to remove burrs or ridges.
• Fix scratches, holes and dings with spackling compound.
• Work the compound into the damaged area with a putty knife.
• Fill in holes from handles and hardware if you’re replacing the hardware and need holes in different places.
  • Note: Some paint cabinets have a catalyzed lacquer finish that’s very hard. Primer won’t form a good bond to this surface unless you scuff it up first.
• Lightly sand the doors and cabinet frames, trim and sides with 320-grit sandpaper.
  • Pro tip: Sand just enough to take off the shine—you don’t need to sand off the finish.
• Vacuum the dust off the wood using a bristle attachment.
• Right before you’re ready to apply the primer, wipe down the doors and frames with a tack cloth.
  • Note: Running the cloth over the surface is enough—you don’t need to scrub to remove the fine dust particles.

Family Handyman

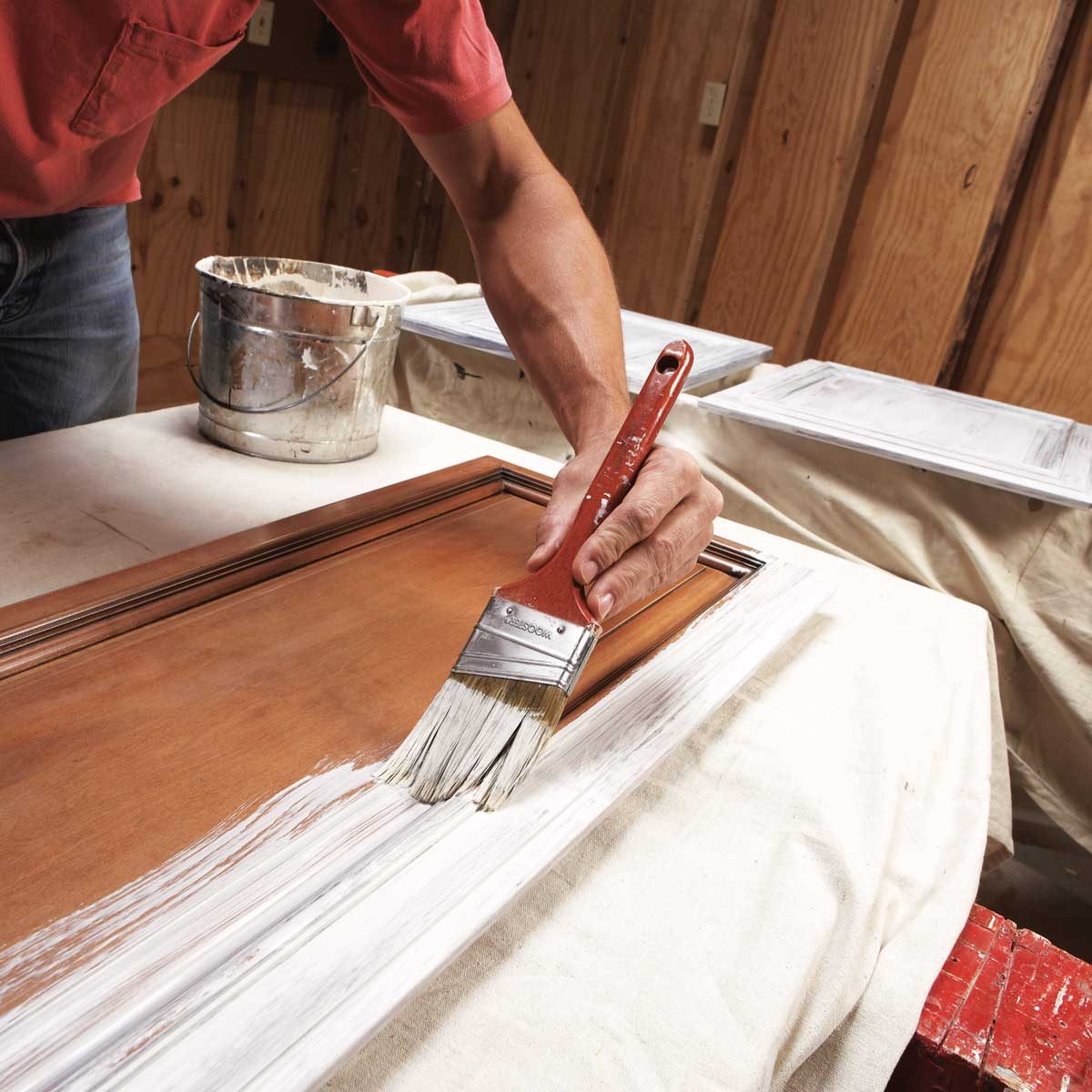

Prime the Cabinets

• Using a paintbrush, prime the doors and cabinet frames with a stain-blocking primer.
  • Pro tip: Don’t use a roller. It leaves a texture that will affect the finish. Besides, brushing is almost as fast as rolling, and you can use the bristles to work the primer into crevices.
• Prime one side of all the doors, let them dry while you prime the cabinet face frames and sides.
• Then prime the other side of the doors.

Family Handyman

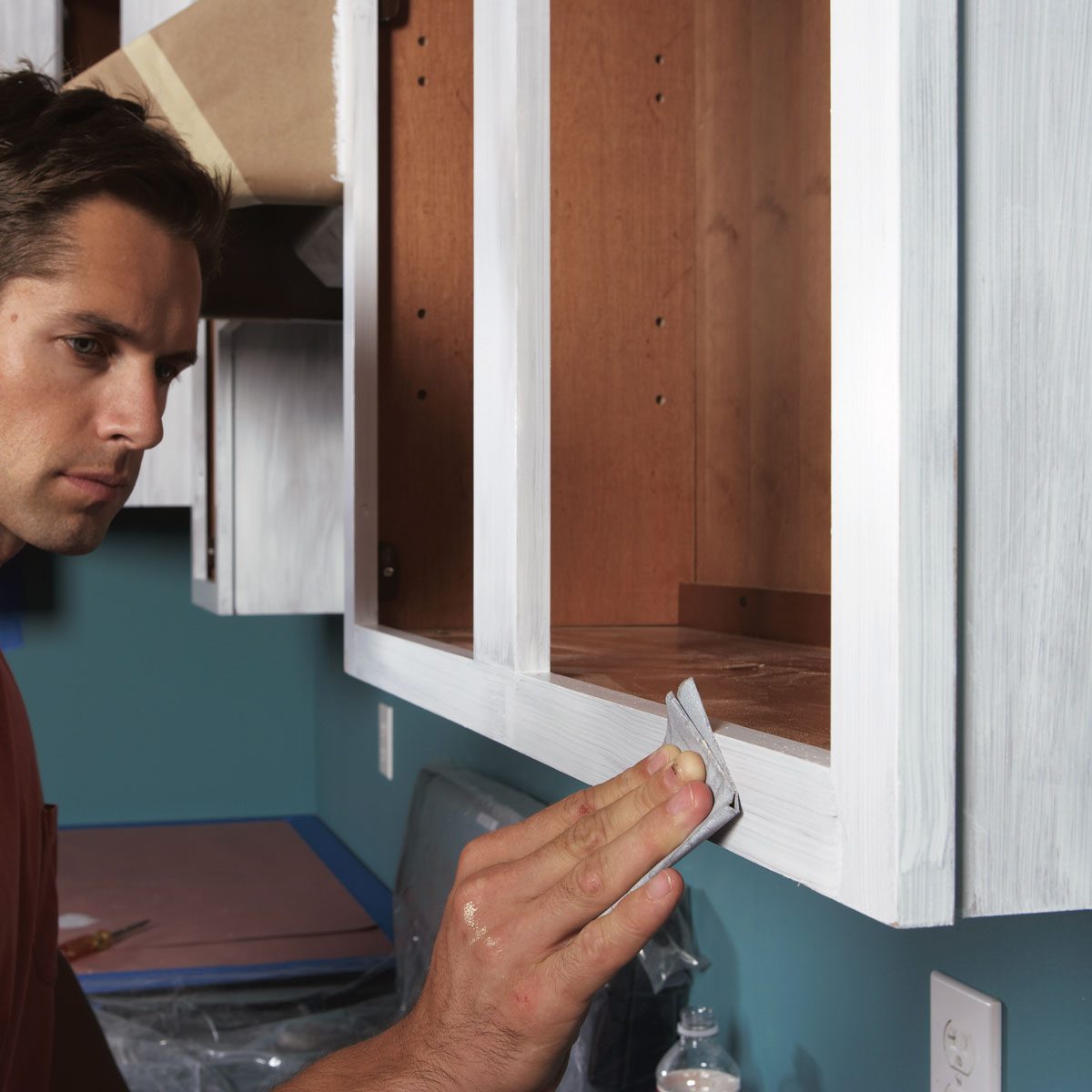

Sand Smooth

• Sand the doors and paint cabinets with fine-grit sandpaper.
  • Pro tip: Sand with the grain, and be careful not to round over corners.
• Wipe the surface clean with a tack cloth.
• If you have doors with coarse wood grain (like oak) and want a smooth finish, fill in the grain with spackling compound.
• Use a putty knife to skim-coat the door with compound, working it into the wood grain.
• Wait for it to dry, sand it with medium-grit sandpaper, then prime it again.

Family Handyman

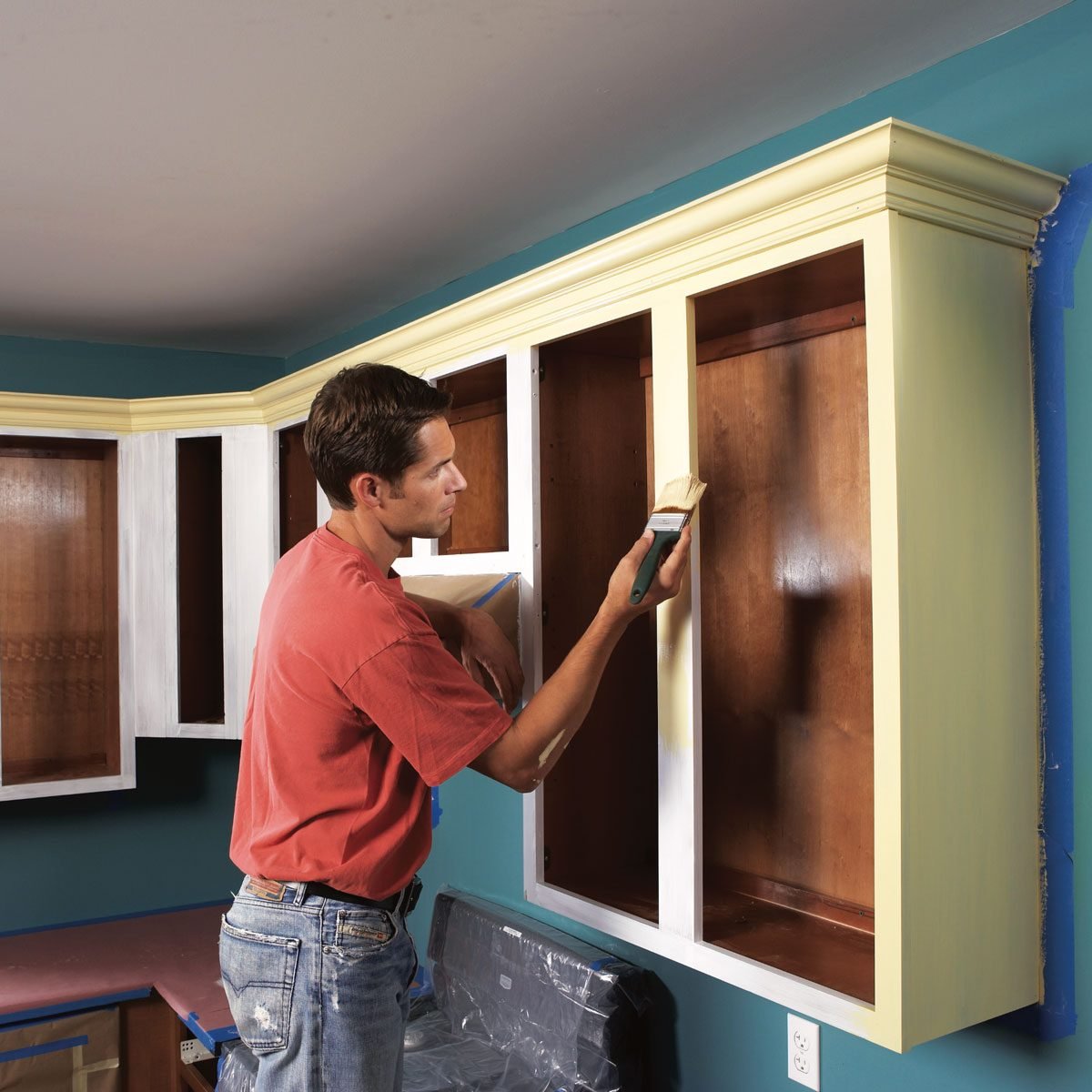

Use a Brush for Frames

• Pour a gallon of the paint into a bucket and thin it with half a cup of water and half a quart of Floetrol paint additive (available at paint dealers).
  • Note: The water and the Floetrol level out the paint when it’s applied and slow the drying process, which helps eliminate brush and lap marks. The thinner paint also provides a more even coat when you’re spraying.
• Paint any exposed sides of cabinets with a brush. Most light brush marks will disappear as the paint dries (thanks to the Floetrol).
• Start in a corner to paint the cabinet frames.
• Use a high-quality paintbrush to paint an entire rail or stile, including the inside edge, before moving to an adjacent rail or stile.
  • Pro tip: Use a gloss or semigloss latex enamel paint for your paint cabinets. Its hard, shiny finish resists stains and fingerprints.

Family Handyman

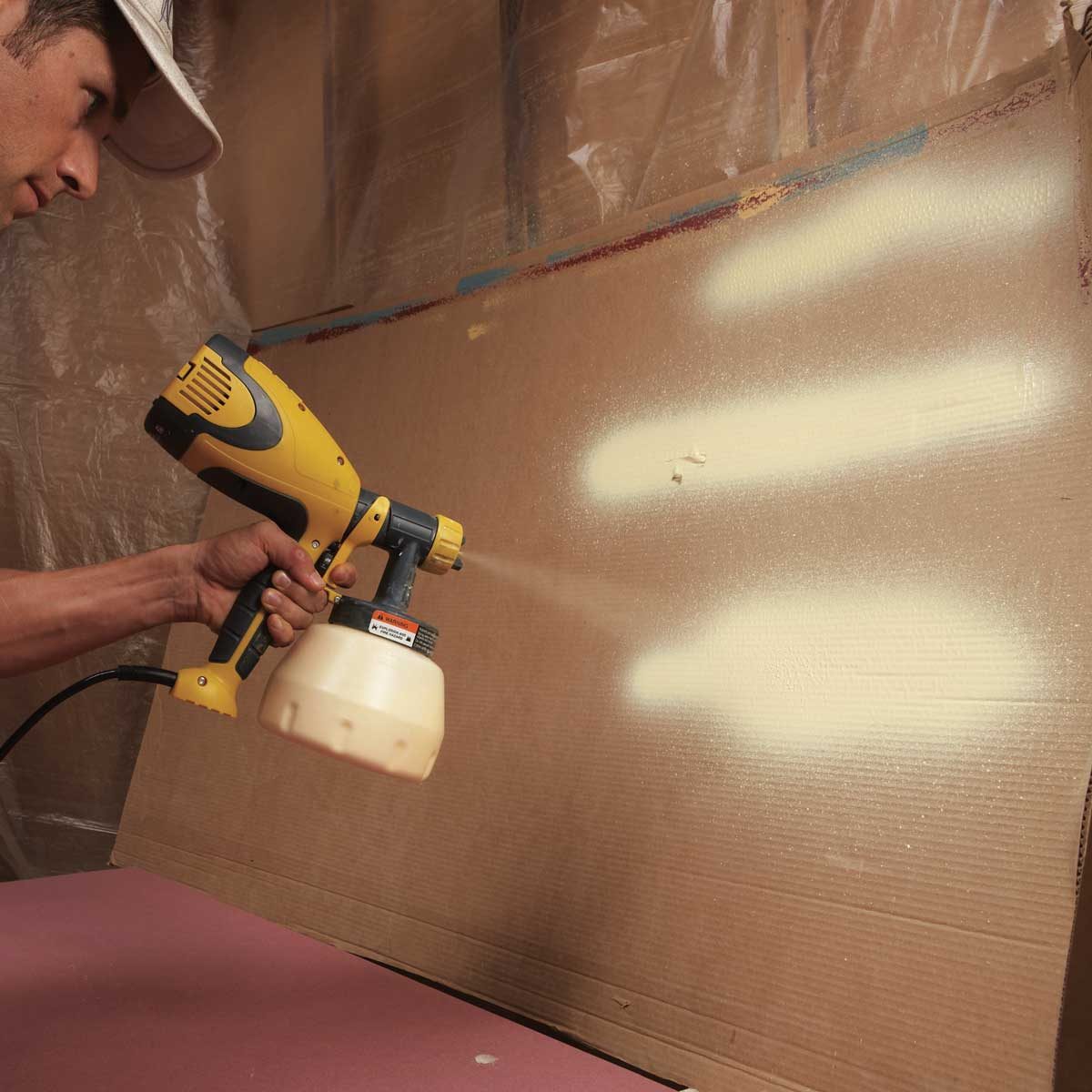

Practice First

• Before spray painting, construct a makeshift booth to contain the airborne spray.
• Assemble a work surface (putting boards over sawhorses works great), then hang plastic sheeting around the work area.
• Make sure to ventilate the room—even if it’s just a fan blowing out an open window.
• Fill the spray container with the paint mixed with Floetrol and water.
• Wear a mask respirator when spray painting.
• Practice spray painting on cardboard, keeping the nozzle 10 to 12 inches from the surface. Here are a few tips for interior painting with a sprayer.
  • Pro tip: Sweep your entire arm back and forth across the door panel; don’t just use your wrist.
• Adjust the nozzle to get a vertical fan pattern.
• Adjust the flow rate so the paint covers the surface without running.

Family Handyman

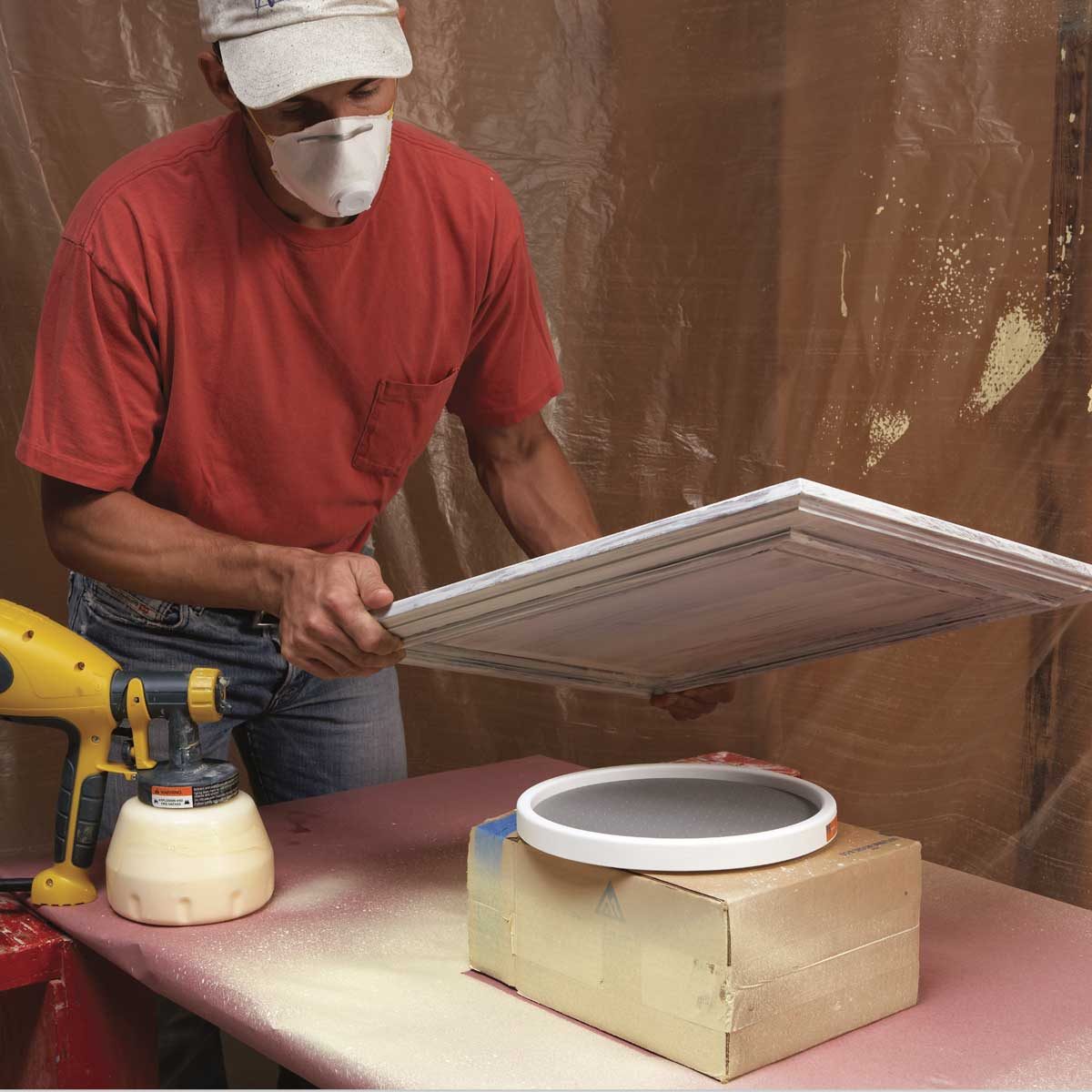

Rotate the Doors While Painting

• When you’re ready to paint, set a block of wood or a cardboard box on the work surface to elevate the doors.
• Place a lazy Susan turntable over the box, then set the door on top of it.
• Stand in one spot and rotate the door to paint each side.
• Keep the nozzle 10 to 12 inches from the door and maintain a consistent angle while spraying.

Family Handyman

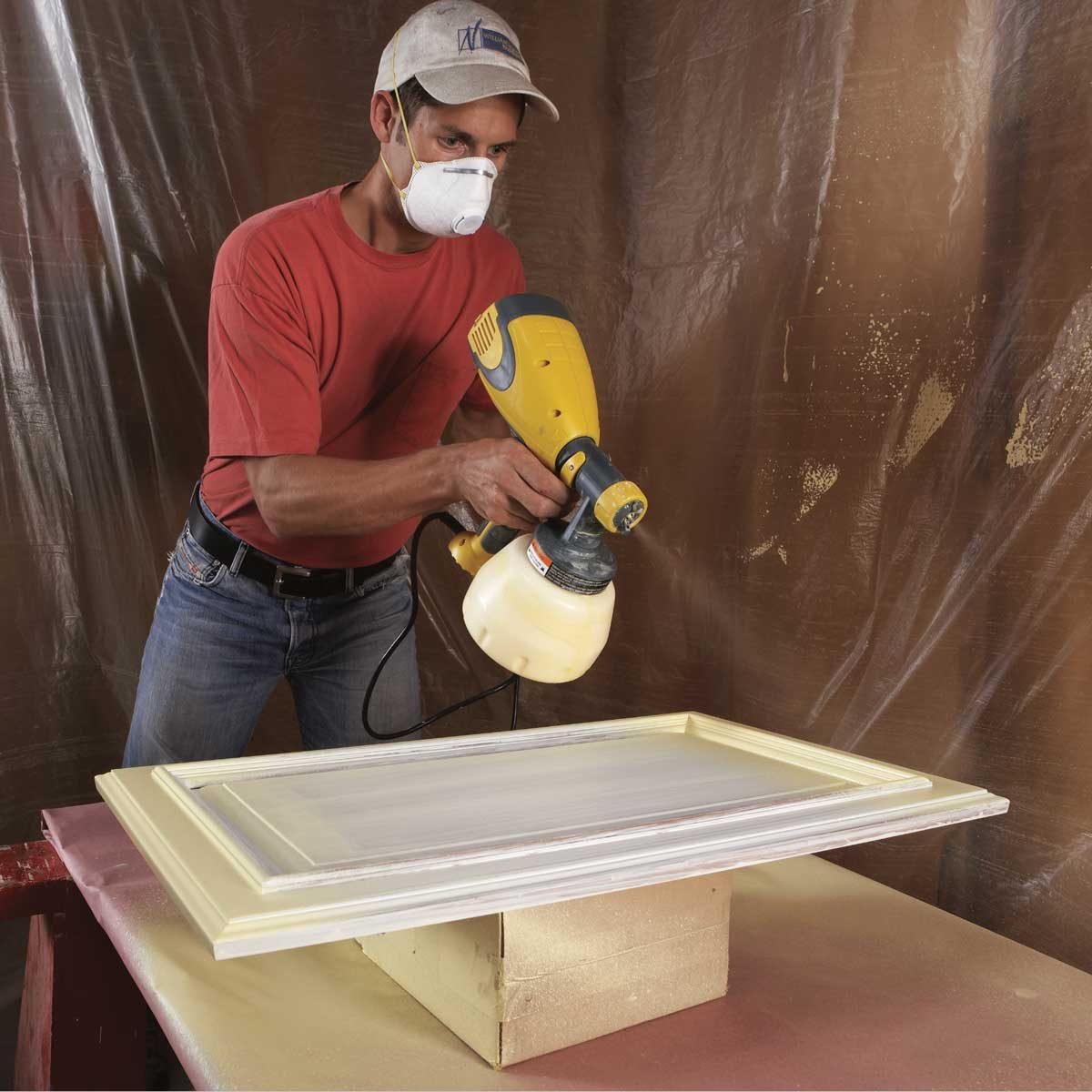

Paint the Edges

• Paint the edge and detail work on one side.
• Turn the door to paint the adjacent edges and details.
• Start the spray before the door, and keep spraying past the edge.
  • Pro tip: Don’t worry if you missed a spot. You can catch it on the second coat.
• Let the paint dry overnight.
• The next day, give the paint cabinet frames, sides and trim a second coat.
• Spray a first coat on the door fronts.

Family Handyman

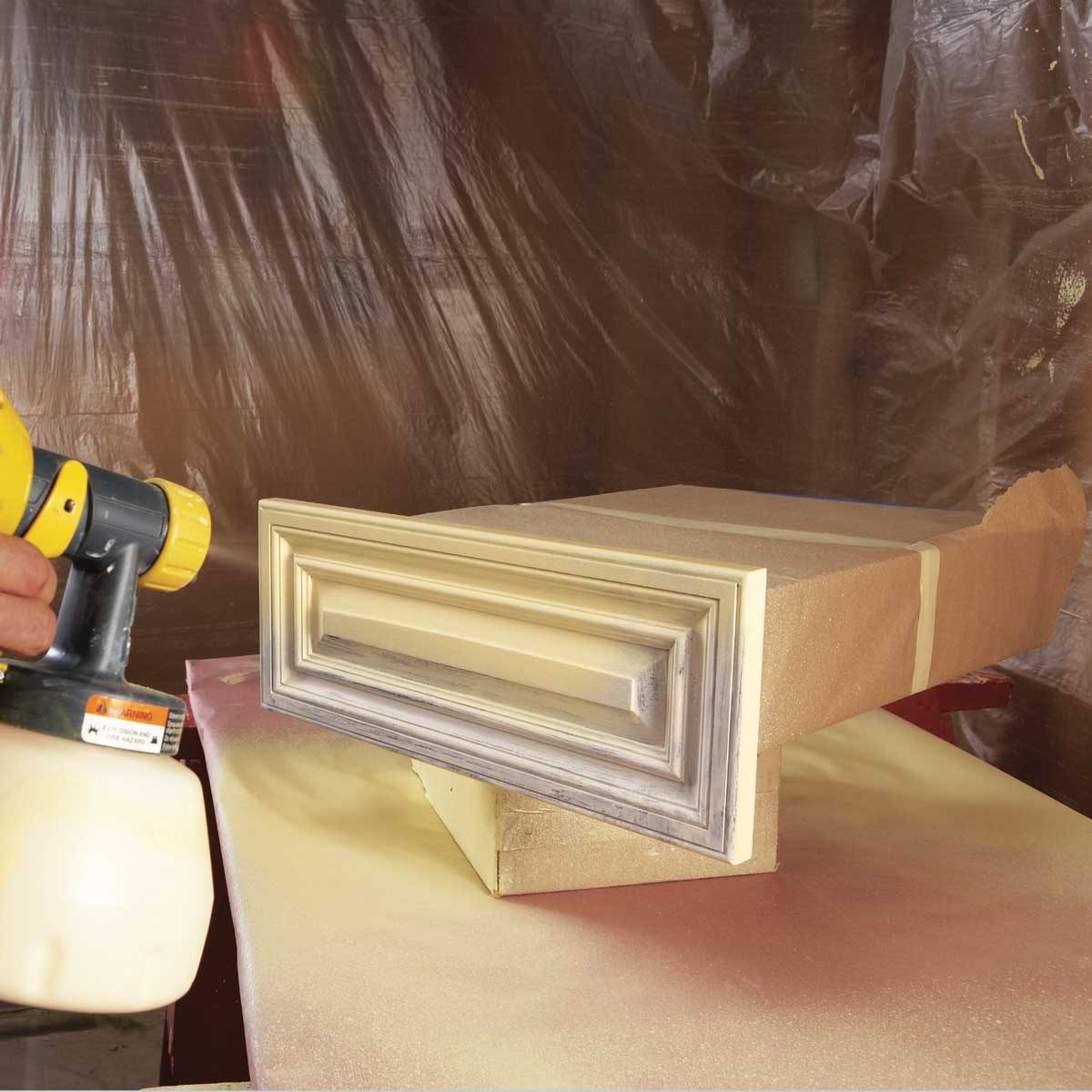

Paint the Drawers

• After wrapping the inside with plastic or paper, paint the drawers with the sprayer.
• Paint the backs first, then the edges and then the faces, starting at the top and working down.
• Start and stop the spray past the sides of the drawer.
• Let the doors and drawers dry overnight, then give them a second coat.

Family Handyman

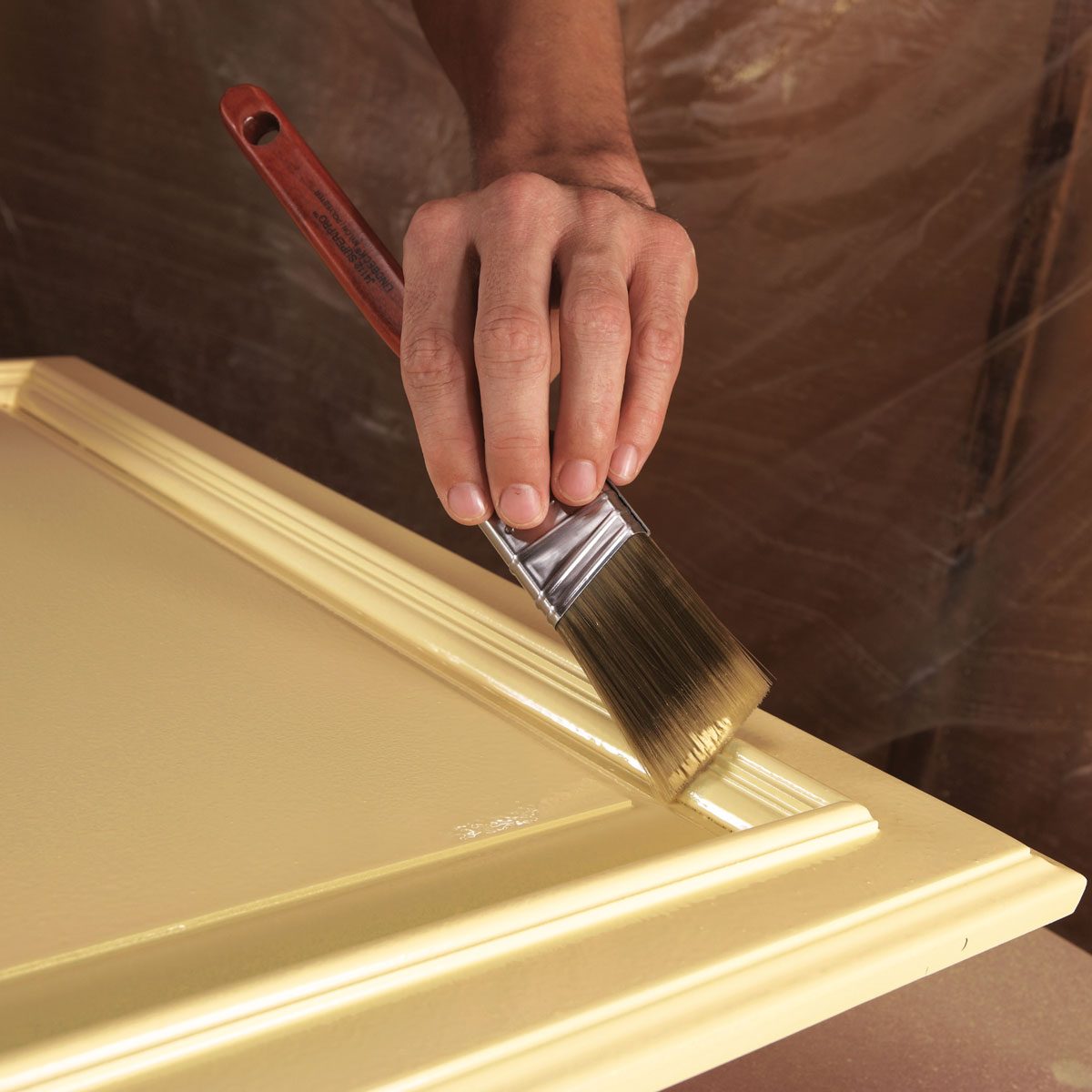

Touch Up Runs

• Fix paint runs with a paintbrush while the paint is still wet.
• If the paint is dry or tacky, wait until the next day, then sand out the run or imperfection and repaint.

Family Handyman

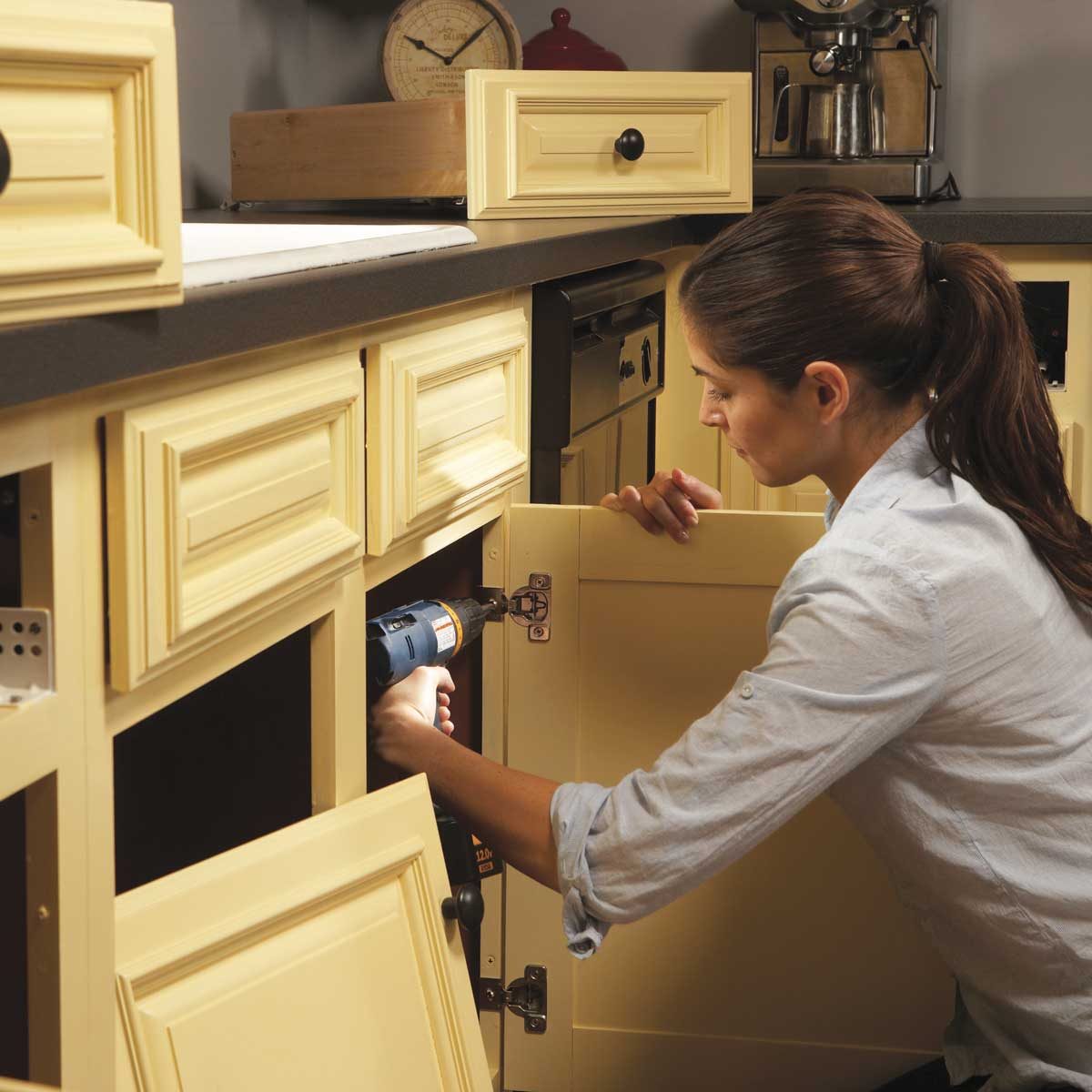

Put Everything Back Together

• Reinstall the doors and drawers in the kitchen.
• Attach the hinges to the doors first, then screw them to the cabinet frames. Reattach any other hardware.
• If any paint seeped into the hinge holes, scrape it out so the hinges will fit snugly.

Family Handyman

Immaculate Finish in 90 Minutes

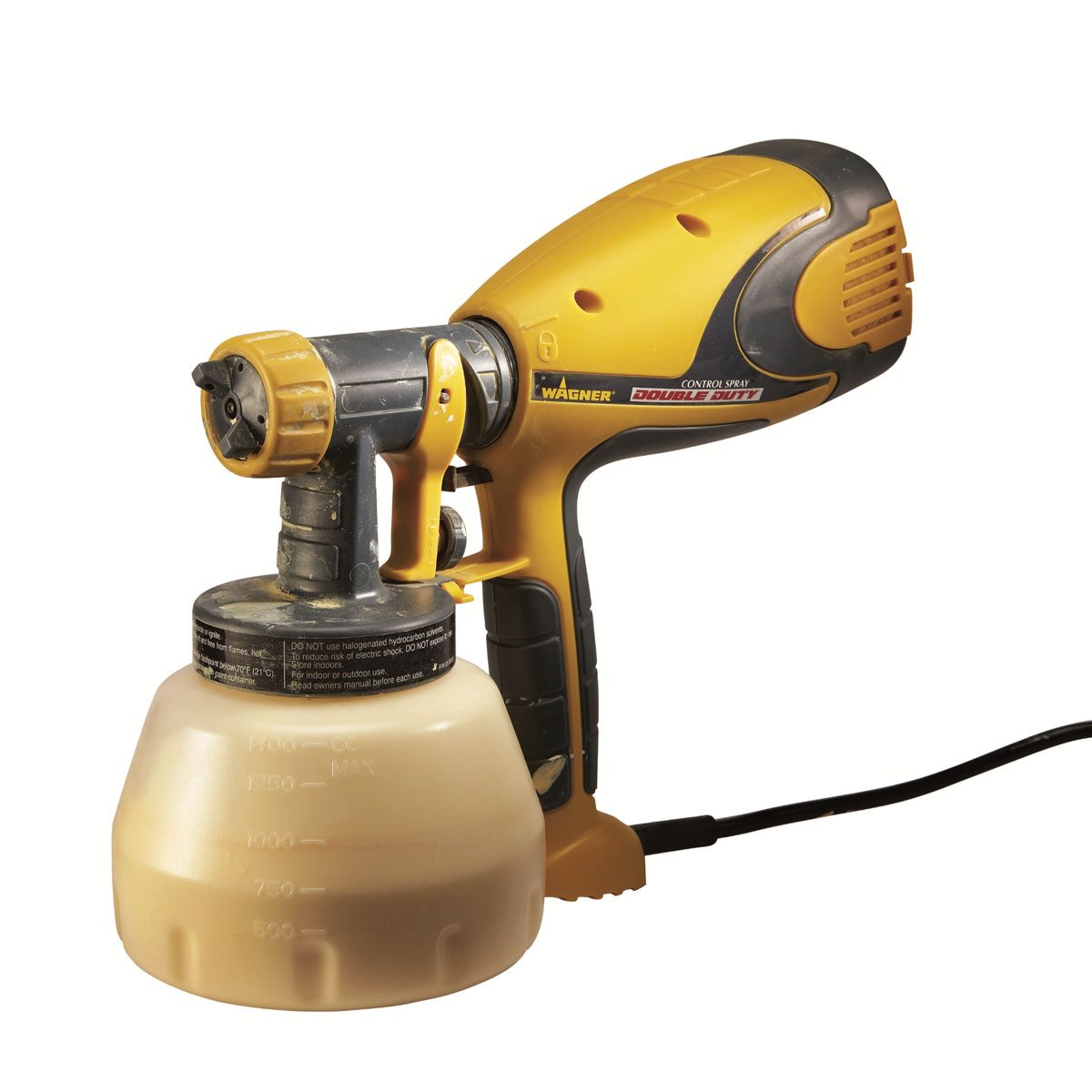

For this project, we used a Wagner Control Spray Double Duty spray gun. The high-volume, low-pressure (HVLP) sprayer gives the doors a thin, even coat of paint and makes quick work of painting. We sprayed our 18 doors and four drawers in less than 90 minutes per coat. The sprayer occasionally “spits” paint, but the Floetrol that you mix in levels out the finish. You can clean the sprayer in about 10 minutes.

The paint experts we talked to say you can get a nice-looking finish with non-HVLP sprayers too. But the advantages of an HVLP sprayer are that the low pressure produces little overspray, so most of your paint ends up where you want it—on the doors—and the spray is easy to control.
